Legend LUX ACD

Legend LUX ACD


When you dive with a Legend, you’re diving with the best. So why not get one that looks the best too?

There is no mistaking the rich look of pink gold. This head-turner exudes quality. The tougher-than-nails PVD finish will keep its good looks too as the pink gold is much harder and durable than traditional chrome plating.

Add To Cart

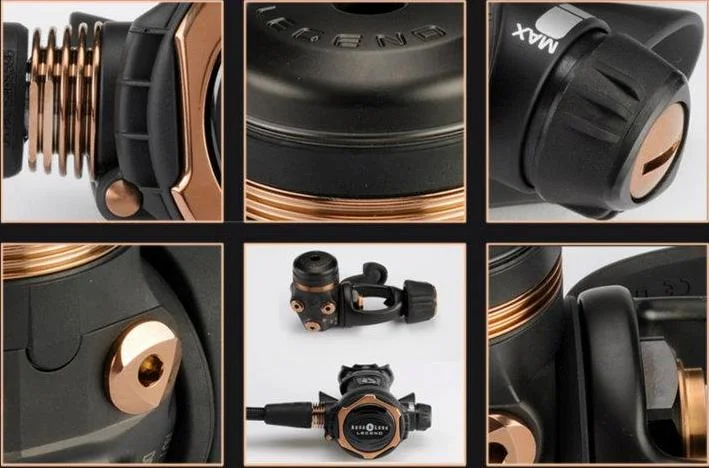

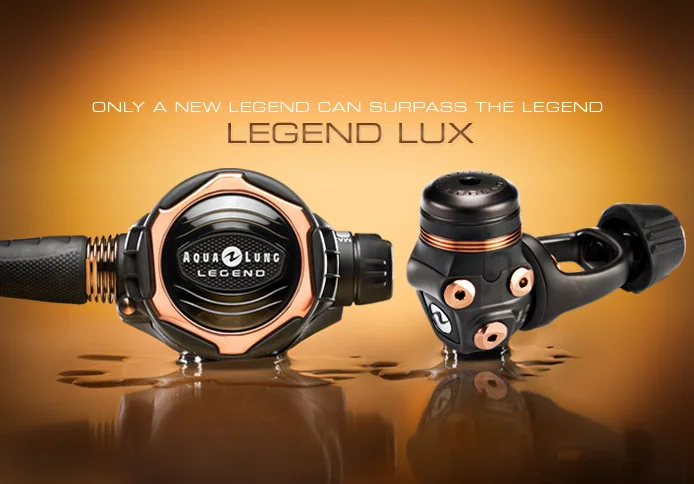

The Legend LUX ACD regulator offers lush and fine detailing for the diver who wants inner touch on his high performing Aqua Lung Legend regulator.
The “Pink Gold” components are treated with a specific and special coating like the one used by Rolex and some other watches brand, called DLC (Diamond Like Carbon), which is not a chrome plating. PVD coating is used on the Legend components for durability, which is thesame coating used on F1 engine valves to have a better resistance on abrasion, impact, corrosion, which is to increase the hardness.

The Legend Lux will be supplied with a special Black & Pink Gold regulator box and comes with a Special Black and Gold Regulator Bag.


First Stage:

  • Auto Closure Device (ACD) - keeps corrosive water out of the first stage inlet by automatically closing as the Legend is removed from the cylinder valve

    • This prevents internal lubrication from washing away

    • Safer for elevated percentages of oxygen

  • Unique over-balanced, diaphragm design results in superior performance at depth

  • 2 HP ports and 4 MP ports are angled for optimum hose routing

  • An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out

  • Available in yoke connector

  • Compatible with up to 40% O2 right out of the box

Second Stage:

  • Master Breathing System (MBS) - The MBS is a new, simple and effective way to adjust the breathing performance of your Legend LUX. The MBS controls two functions at one time. It controls the direction of air, which alters the venturi effect, as well as changes the opening effort. One control – two functions, it doesn’t get easier.

  • Pneumatically-balanced second stage results in smooth, easy breathing

  • The Comfo-Bite™ mouthpiece virtually eliminates jaw-fatigue

  • A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water

  • The ergonomic exhaust tee channels the exhaust bubbles out of your field of vision. The design also contributes to a reduction in exhalation effort

  • Attached to a 29” braided Aqua Flex hose. These hoses are lightweight and extremely pliable which eliminates any tugging on the mouthpiece


Type of first stage - Over-balanced diaphragm design, environmentally sealed

First stage weight yoke (grams) - 882

First stage length (mm) - 74.7

Auto-Closure Device (ACD) - YES

First stage MP chamber - Enlarged, symmetrical, all ports provide equal access

Number of HP ports - 2

Number of MP ports - 4

Environmental Dry Kit - Standard

First stage exterior - PVD Coating

First stage handwheel - Triangular shape with oversized soft grip ribs, auto-drain

First stage dust cap - Redesigned so it will not inadvertently open the auto-closure device (ACD)

Type of second stage - Pneumatically balanced

Second stage weight - (grams) - 200

Second stage diameter (cm) - 6.57

Controls - One control, the MBS, adjusts both the venturi and the opening effort

Breathing resistance - User adjustable

Mouthpieces - 2 - Comfo-Bite™ installed, standard with bite wings in box

Front cover - Co-molded w/ limited range to control purge flow rate

Exhaust tee - redesigned for better bubble dispersion and easier exhalation

Lip shield - Supreme model only

Heat Exchanger for freezing resistance - YES

Hose type - 29" braided AquaFlex hose

Hydrodynamic openings - Lateral

Overall work of breathing (WOB) scores - Avg. 0.65 joules/liter

Nitrox compatible - Yes to 40% O2 when new, out of the box
