Description

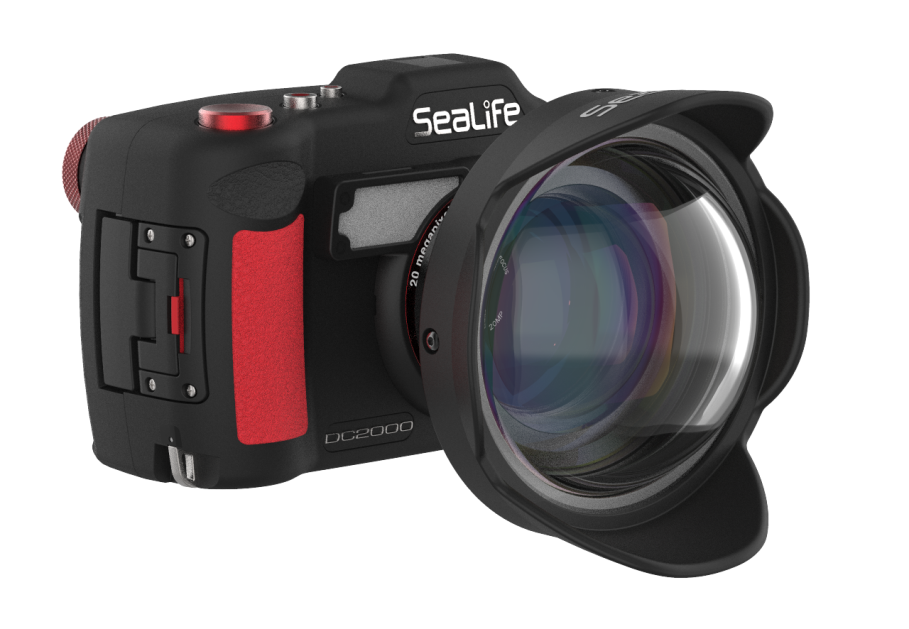

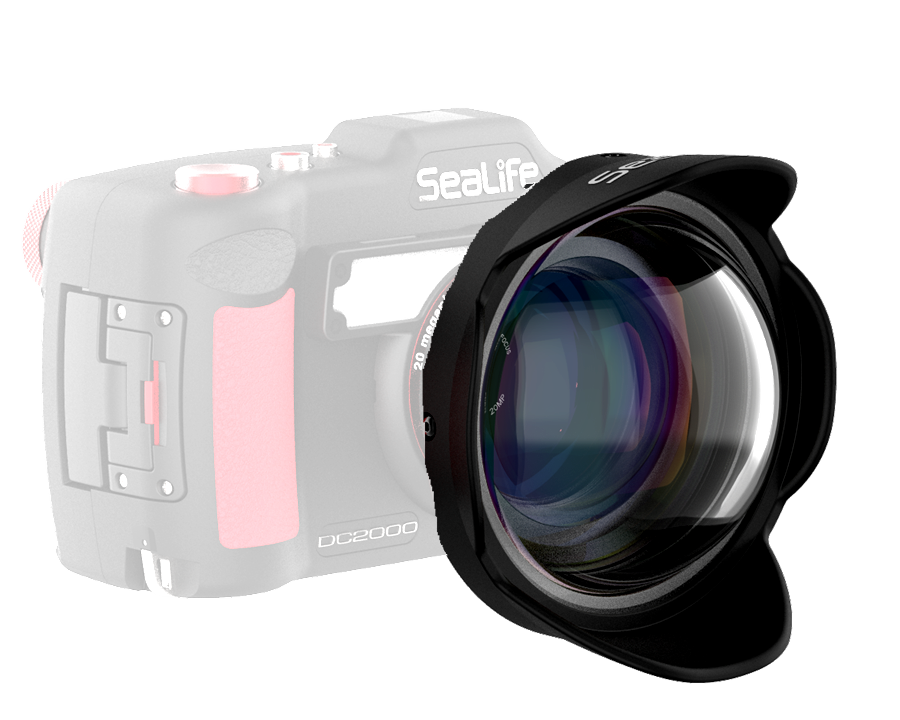

The Dome Lens allows for amazing underwater images and offers incredible perspective of the undersea landscape. The 0.5x Wide Angle Dome Lens has a 16mm effective focal length on the DC2000 underwater camera and features fully multi-coated precision optics for maximum light transmission. The effective focal length with the Dome lens on the DC1400 camera is 14mm.

The lens fits all DC series SeaLife cameras and other cameras with 52mm threads and can easily be attached and removed while underwater.

What makes this lens particularly versatile is that it works equally well for video as it does for still images, adding more to your shots while staying easily within the distance limits of flash or video lights.

Get the incredible, wide perspective of an entire wreck, reef scene or capture stunning close-up images while maintaining a wide field of view. When combined with the DC2000 camera in Super Macro Auto Focus Mode, the 0.5x Wide Angle Dome Lens provides an ultra-wide angle all the way down to 4 inches from your subject.

The dome-shaped lens design offers the maximum field of view underwater. The lens is waterproof to 330 feet (100m) and includes neoprene lens covers for mounting and objective sides, 52mm thread mount, 52mm DC adapter, and micro fiber cleaning cloth.

Features:

0.5x Wide Angle Dome Lens increases field of view by 100%

Waterproof to 330 feet / 100 meters

Fits all DC series SeaLife cameras and other cameras with 52mm threads

16mm Effective Focal Length on the SeaLife DC2000 underwater camera

14mm Effective Focal Length on the SeaLife DC1400 underwater camera

Dome-shaped lens obtains maximum field of view underwater

Easily attach/remove lens while underwater

Specifications:

Optical construction - 5 elements / 5 groups

Angle of view - DC2000: Increases field-of-view from 46° to 100°
DC1400: Increases field-of-view from 61° to 120°

Optical coatings - Air-to-glass surfaces fully multi-coated with anti-reflective deposition coating

Magnification ratio - 0.5x

Attachment method - Push-on lens ring attaches to all SeaLife DC cameras while underwater
or 52mm threads attaches to UW housings with 52mm thread mount

Focus ranges - Maintains camera’s focusing range

Lens weight (lens only) - 590 grams / 20.8 ounces

Lens dimensions - 4.6” diameter x 3.1” length
(117mm diameter x 80mm length)

Depth - Individually depth tested to 330’ (100m)

Buoyancy - Negative

Warranty - 1 year limited warranty

Packaging dimension - 6.9” x 6.3” x 4.9”
175mm x 160mm x 125mm

Packaging weight - 700 grams / 1.5 lbs

SeaLife DC2000 camera: Can be used in macro, super macro, and auto focus with 0.5x Wide Angle Dome Lens. Lens will not work in infinity focus.

SeaLife DC500 to DC1400 cameras: Must be set to macro focus with 0.5x Wide Angle Dome Lens.

Whats Included:

0.5x Wide Angle Dome Lens w/52mm thread mount
52mm DC adapter
Neoprene lens cover
Micro fiber cleaning cloth

SeaLife 0.5x Wide Angle Dome Lens Manual
