Description

When you need to get everything in the shot

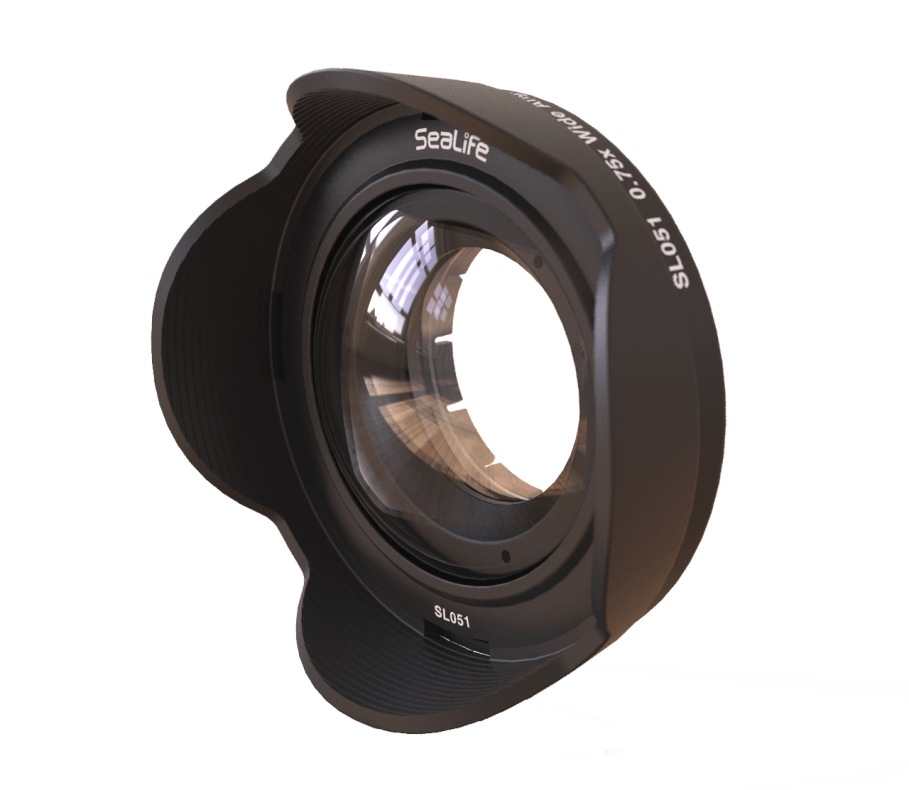

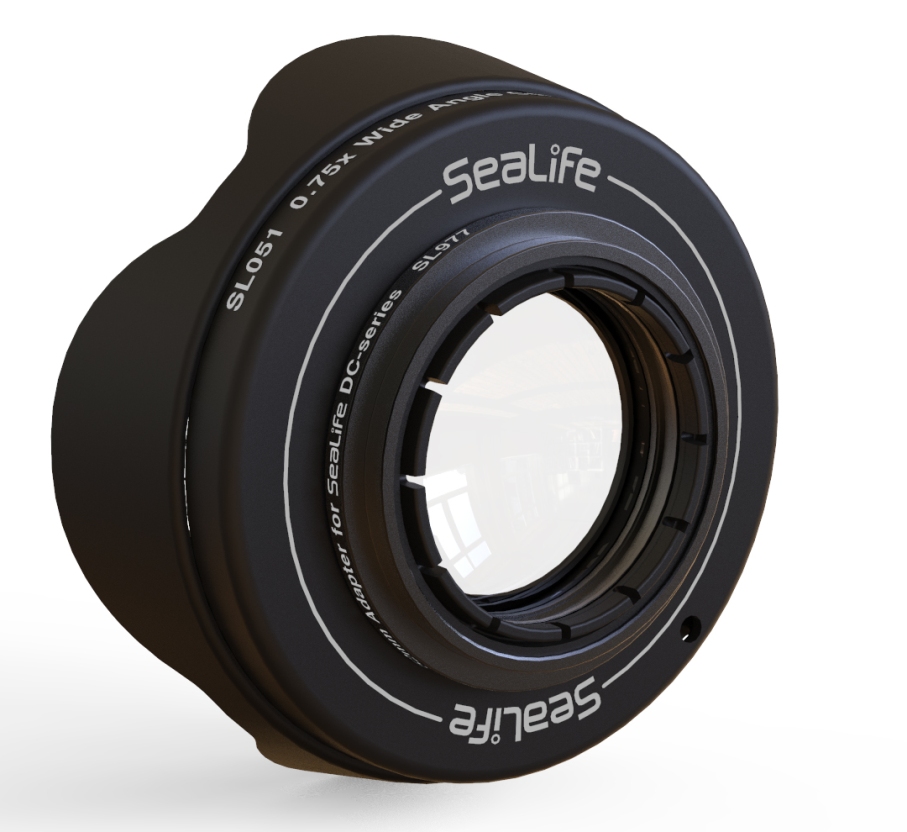

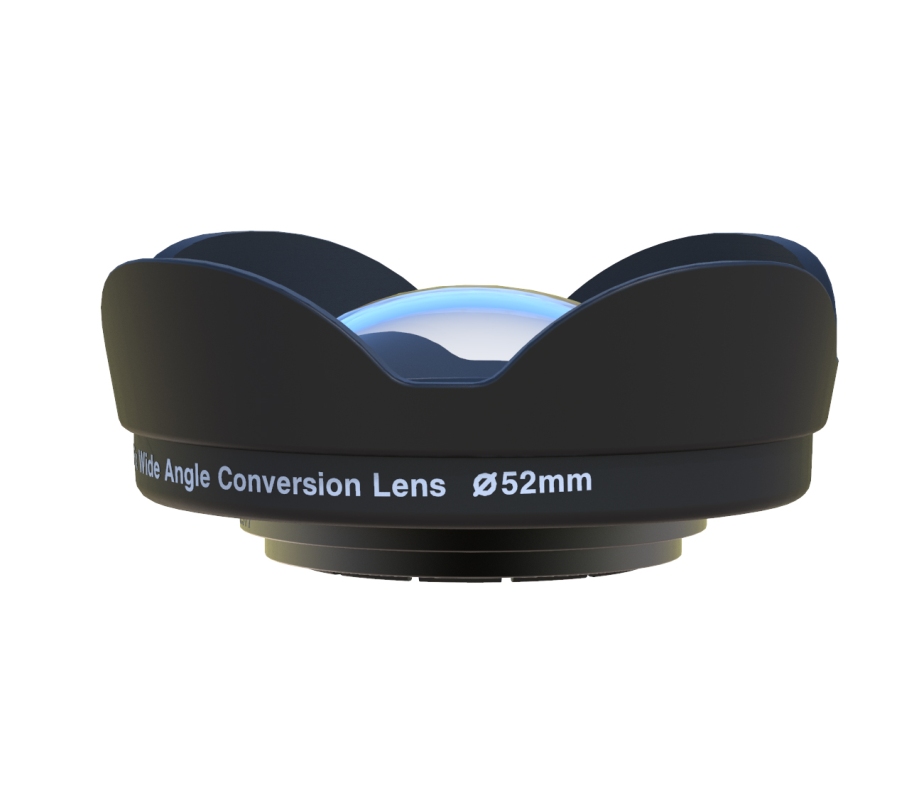

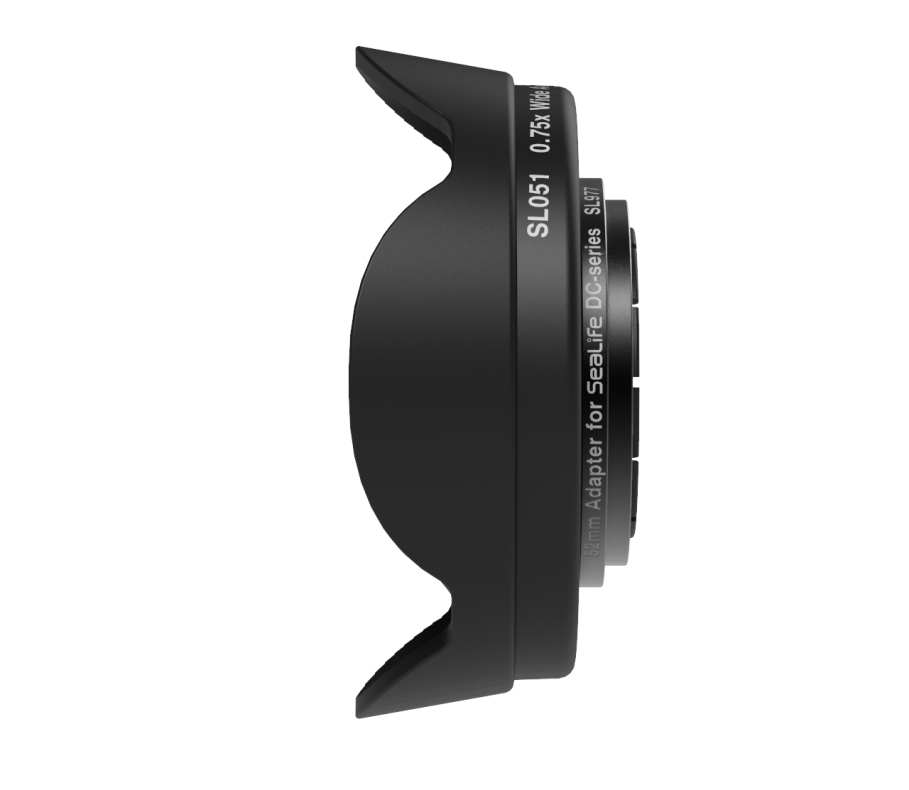

With the SeaLife 0.75x Wide Angle Conversion Lens, you can stay within the shooting range of your flash and still fit everything in the shot. The Wide Angle Conversion Lens compensates for the water’s magnification effect, increasing underwater field-of-view by 33%!The Wide Angle Conversion Lens compensates for the water’s magnification effect, increasing underwater field-of-view by 33%!

The lens fits all DC series SeaLife cameras and other cameras with 52mm threads and can easily be attached and removed while underwater.

The 0.75x Wide Angle Conversion Lens compensates for the magnification effect of water. Maintains camera’s focal length on land or underwater. Universal 52mm lens mount works with many other cameras and housings.  Lens is a “wet” lens and can be mounted or removed underwater.

Features:

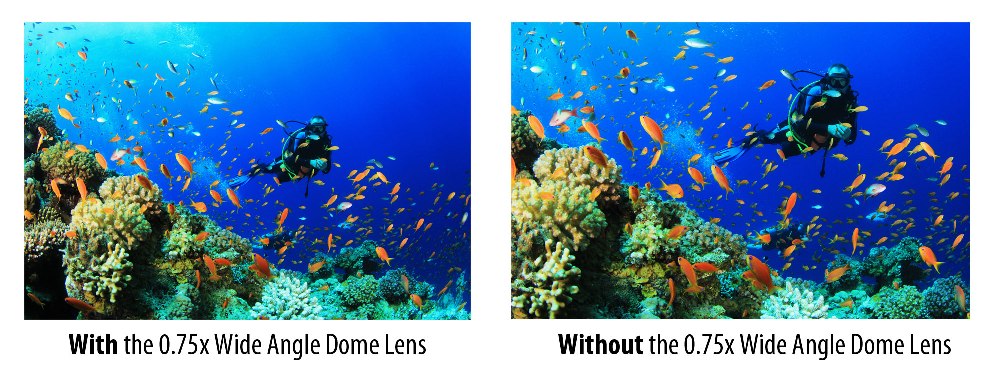

0.75x Wide Angle Conversion Lens compensates for the water’s magnification effect (i.e. refractive index), increasing underwater field-of-view by 33%

Precision 2-element optical construction maintains edge-to-edge sharpness

Maintains camera’s focal length on land or underwater

Fully multi-coated optics for maximum light transmission

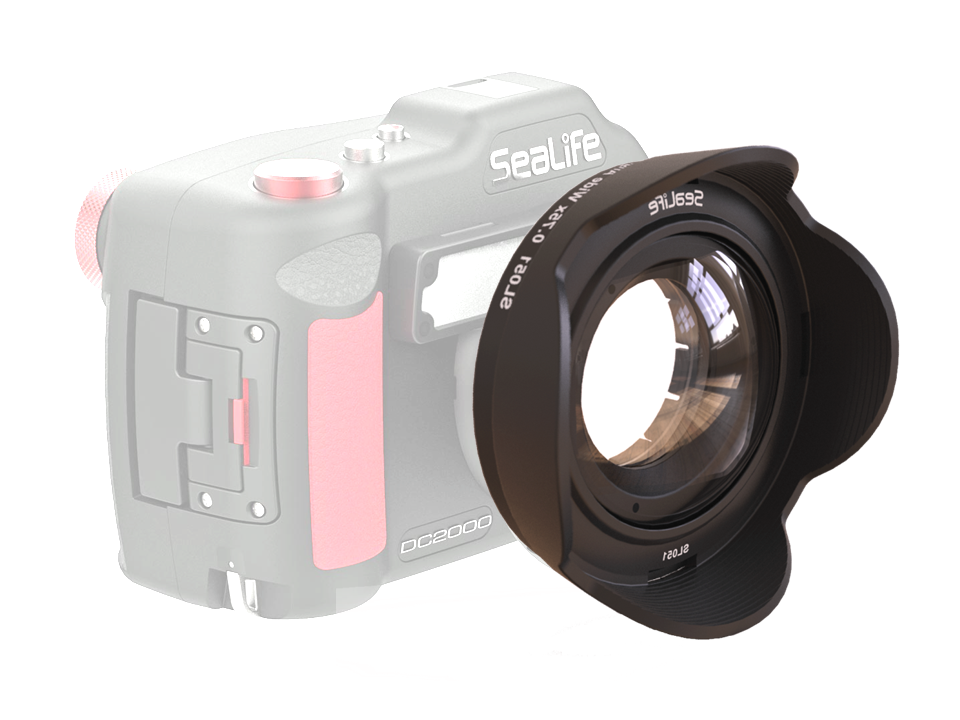

Fits all SeaLife DC-series cameras and other cameras w/ 52mm thread mount

Easily attach/remove lens while underwater (also works on land)

Polycarbonate Dome lens with scratch resistant hard coating Includes SL977 52mm DC adapter ring

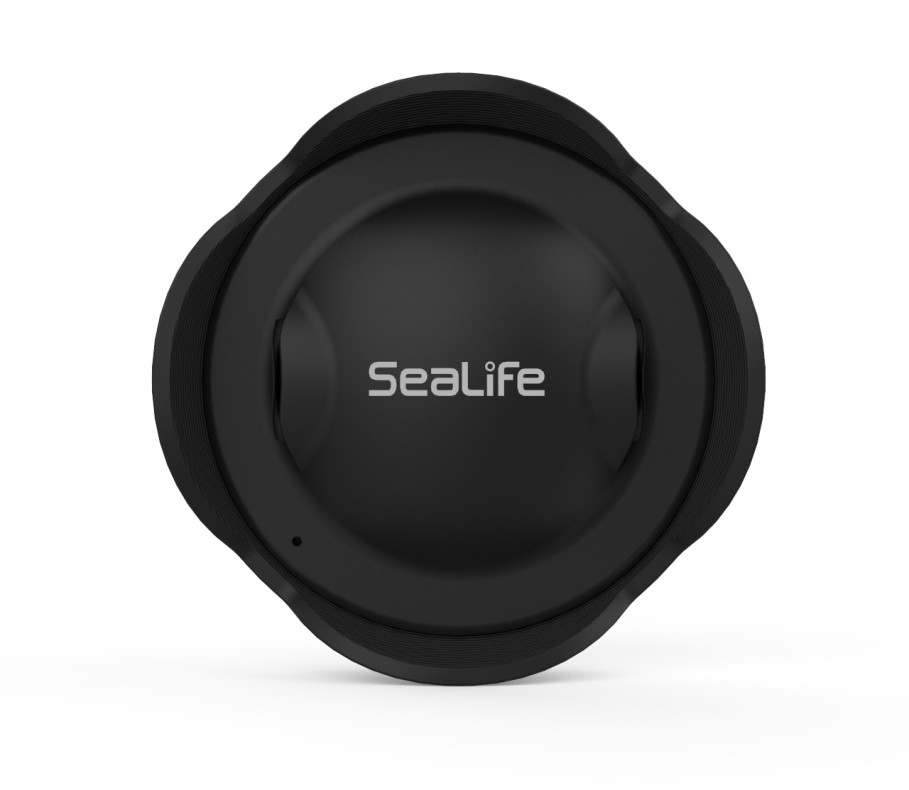

Molded lens covers included

Waterproof to 164ft / 50m

Specifications:

Optical construction - 2 elements / 2 groups

Angle of view - DC2000: Increases underwater field-of-view from 46° to 61°
DC1400: Increases underwater field-of-view from 61° to 81°

Optical coatings - Internal optical surfaces fully multi-coated with anti-reflective coating

Magnification ratio - 0.75x underwater

Attachment method - Push-on lens ring attaches to all SeaLife DC cameras while underwater
or 52mm threads attaches to UW housings with 52mm thread mount

Focus ranges - Maintains camera’s focusing range

Lens weight (lens only) - 155 grams / 5.5 ounces

Lens dimensions - 4.1” diameter x 1.6” length
(105mm diameter x 41mm length)

Depth - Individually depth tested to 164’ (50m)

Buoyancy - Negative

Warranty - 1 year limited warranty

Packaging dimensions - 4.1” x 4.9” x 3.7”
104mm x 124mm x 94mm

Packaging weight - 300 grams / 0.7 lbs

Whats Included:

0.75x Wide Angle Conversion Lens w/52mm thread mount
52mm DC adapter
Lens cover
Retaining Lanyard (attached to lens)
Micro fiber cleaning cloth

SeaLife 0.75x Wide Angle Conversion Lens Manual
